CNC oscillating knife cutting machine for PET felt acoustic panel_Jinan Deveup Intelligent Equipment Co.,Ltd

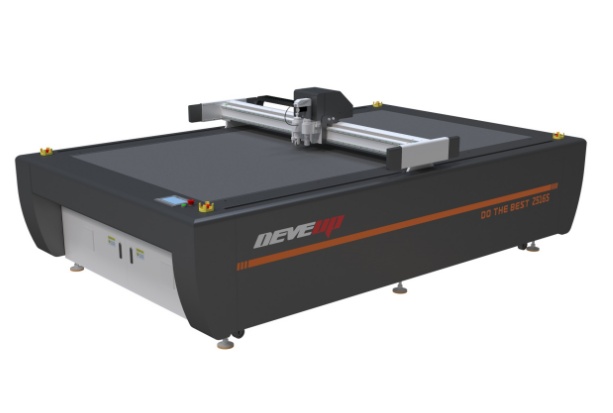

CNC oscillating knife cutting machine for PET felt acoustic panel

Double Efficiency for Polyester Fiber Acoustic Panel Cutting! This Pneumatic Double-Blade Vibrating Knife Cutter Is a Must-Have If you’re in acoustic renovation or home theater upgrades, you know the hassle: grooving or bevel-cutting polyester fiber acoustic panels with single-blade tools means back-and-forth passes—wasting time and risking imprecision. It’s time to leave inefficiency behind!

Model : DO1625S

Applications : PET felt acoustic panel, Insulation foams and etc

Product Details

Features:

Double Efficiency for Polyester Fiber Acoustic Panel Cutting! This Pneumatic Double-Blade Vibrating Knife Cutter Is a Must-Have

If you’re in acoustic renovation or home theater upgrades, you know the hassle: grooving or bevel-cutting polyester fiber acoustic panels with single-blade tools means back-and-forth passes—wasting time and risking imprecision. It’s time to leave inefficiency behind!

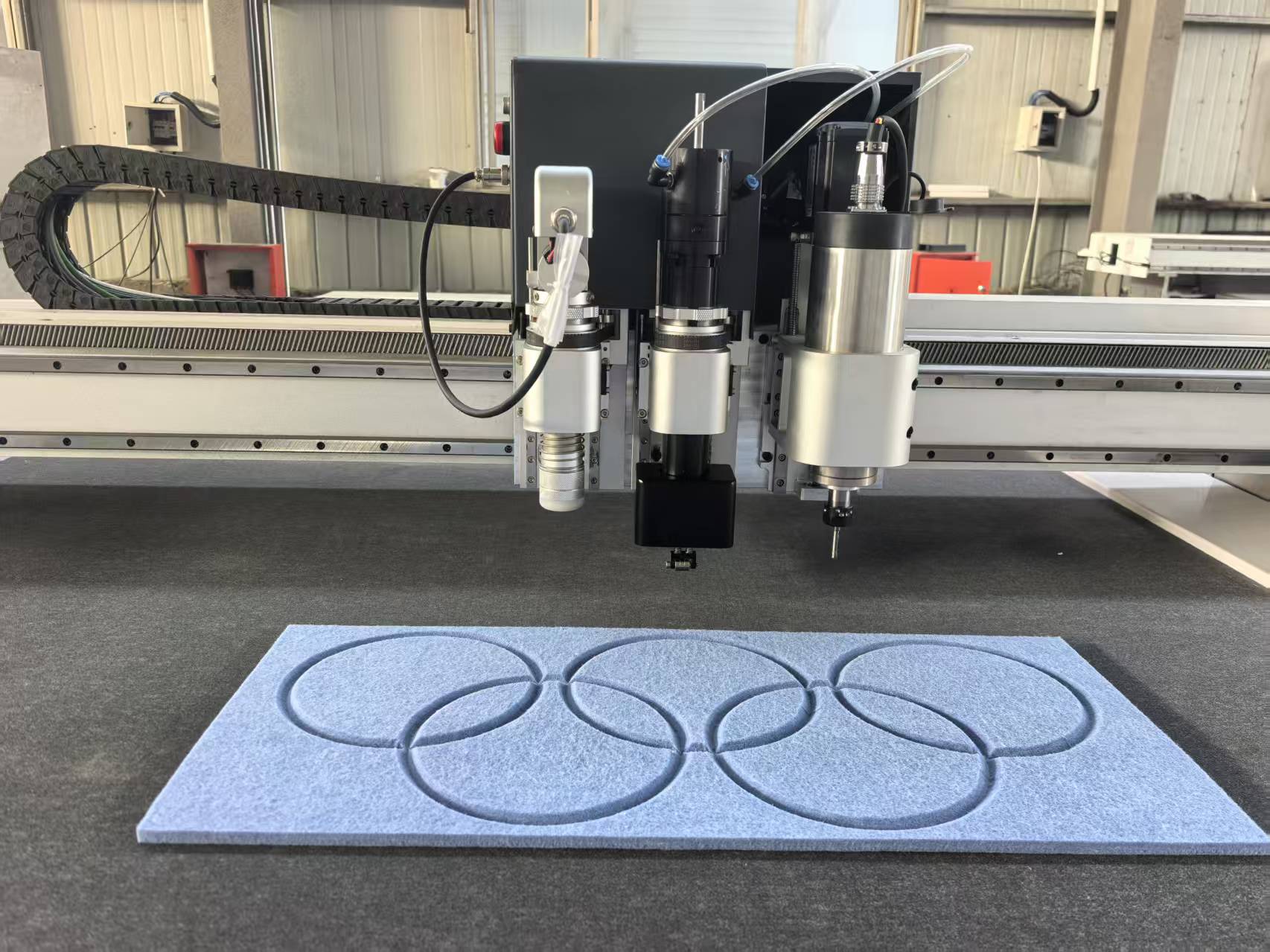

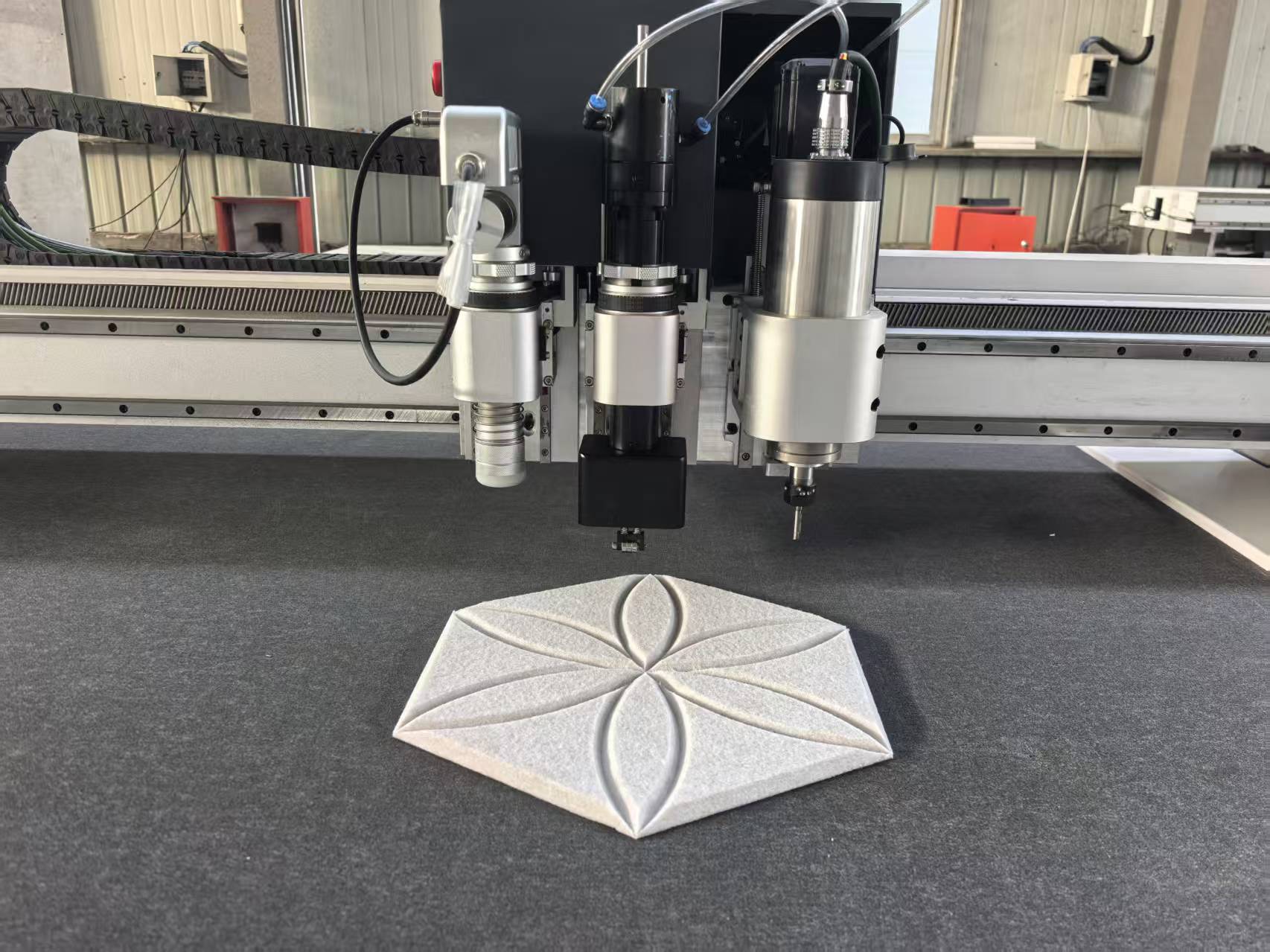

Deveup CNC oscillating knife cutting machine comes equipped with a pneumatic double-blade bevel cutter—a game-changing upgrade from traditional single-blade models. Unlike single-blade cutters that require two separate passes, this tool completes grooving and bevel-cutting on acoustic panel cores in one go! No repeated positioning, no concerns about cutting deviations. It cuts material waste, ramps up construction speed, and literally doubles work efficiency—ideal for tight deadlines and bulk processing.

With precise cuts and high-performance operation, it streamlines your acoustic renovation process, saving time and hassle while delivering professional results. If you have bulk processing needs or want to upgrade your tools, feel free to reach out anytime!

Specifications:

Parameters/Model	DO1625S
Working Size	1600*2500mm
Cutting tools	Electric oscillating Tool + V-grooving Tool (Optional Punching/Milling tool)
Safety device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety
Cutting thickness	≤45mm Other thickness can be customized according to the material
Cutting speed	≤1700mm/s（The actual speed depends on the material and cutting graphics）
Applicable materials	PET acoustic panel, rubber foam, fiberglass wool, rock wool, aluminum silicate cotton, phenolic foam insulation board, polyester fiber felt and other thermal insulation cotton materials and acoustic panels
Cutting precision	± 0.1mm
Repeat accuracy	≦ 0.05mm
Cutting circular diameter	≧3mm Diameter
Positioning way	Laser positioning also optional CCD camera positioning
Safety device	Infrared induction, safe and reliable
Material fixed way	Vacuum adsorption
Transport interface	Ethernet front-end ports / USB
Compatible software format	AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization
Command system	AI, PLT, DXF
Operation panel	Multilingual LCD touch panel
Transmission system	High precision linear guide, meshing transmission gear and rack structure, screw, high performance servo motors and drivers
Power supply voltage	380V/220V ± 10%, 50 hz- 60hz.
Pump power	9KW
