Features:

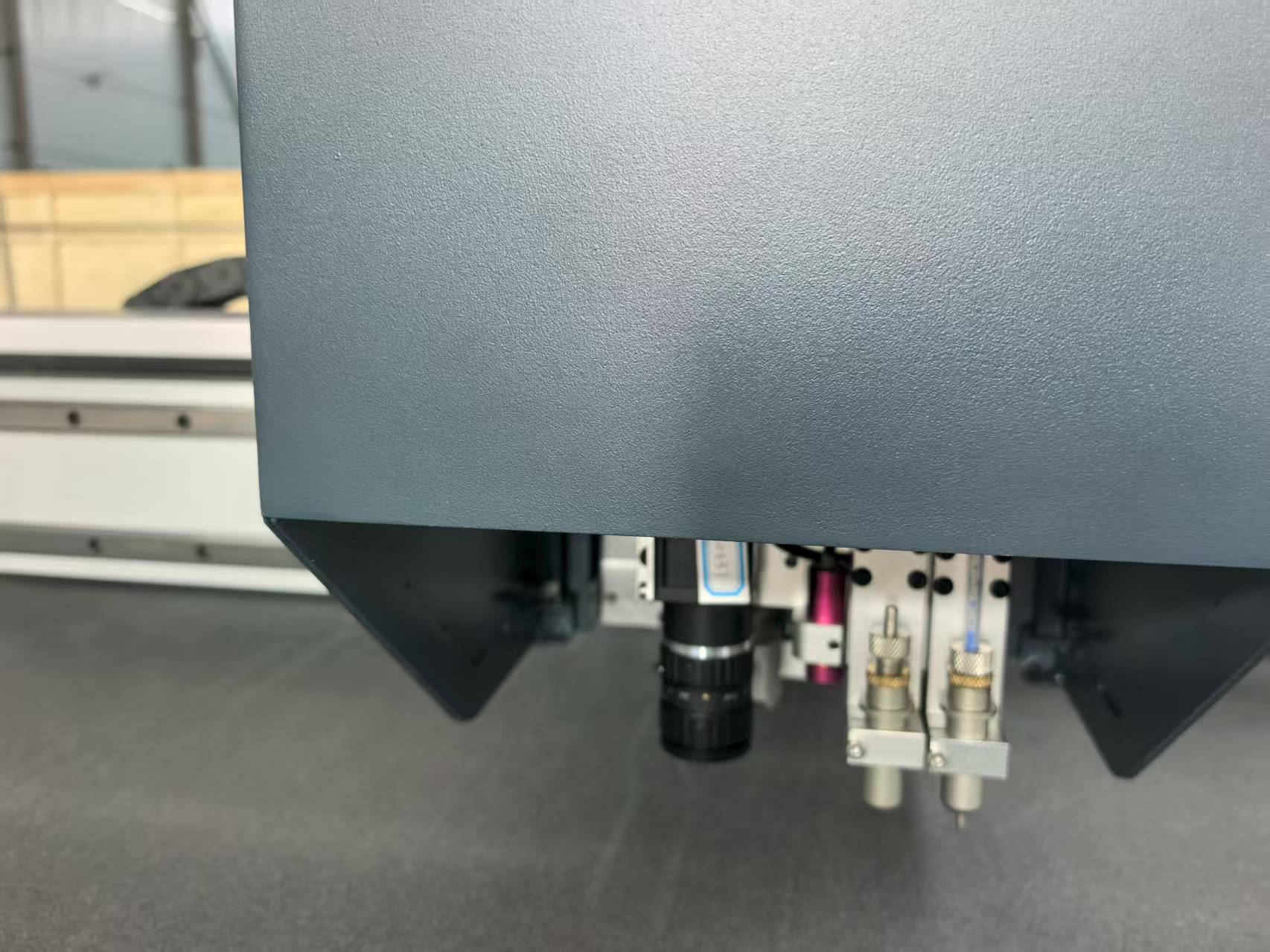

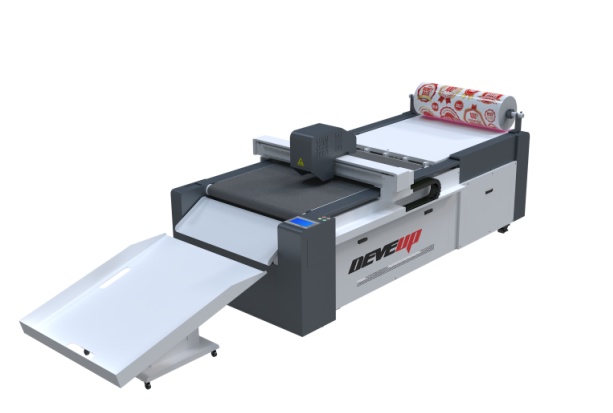

DEVEUP DT series intelligent cutting equipment integrates oscillating kinife cutting tools, creasing wheel

tools, kiss(half-cutting) cutting tool, drag tool, drawing pen tools and precision industrial CCD camera visual

positioning system. According to your original artwork design, it can realize the cutting and creasing of

creative designs of any shape. This product can be used for sample making and small scale production in the

industries of packaging, printing, advertisement, etc.

Specifications:

Technical parameters / model	DT-4060               DT-6080              DT-1290
Effective working area	400*600mm        600*800mm          1200*900mm
Muitfunctional head	Oscillating knife cutting tool,  kiss-cut/half cut tool, drag tool, creasing wheel,CCD camera, dotted line cutting tool, marking pen
Safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	2000mm/s
Cutting thickness	≤45mm Other thicknesses can be customized according to the material
Applicable materials	Paper, cardboard, carton box, sticker, pvc card, id card, ablel, vinyl sticker, corrugated paper, honeycomb carton, pp, Kt board,grey board, coated paper, and etc
Transmission port	Network port
Transmission system	servo motor, linear linear guide, timing belt, lead screw
Rated power	3kw
Rated voltage	220V±10% Optional
Operation Panel	Multi-language touch screen operator panel
Support file format	AI,PLT,DXF
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
